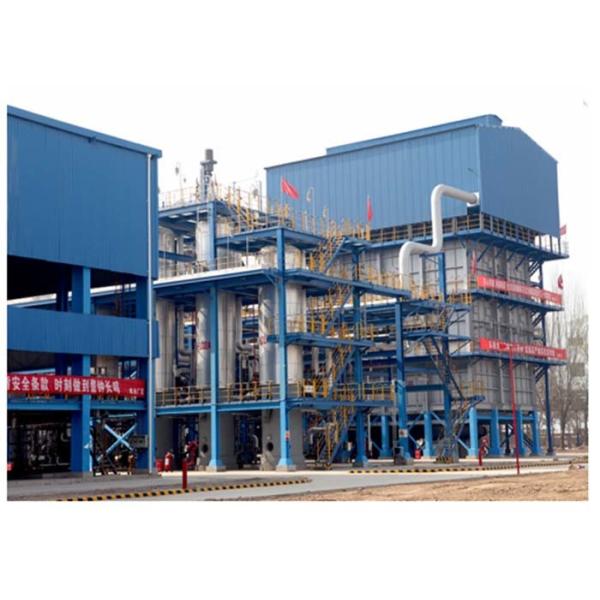

Hydrogen Production Natural Gas Steam Reforming

Name: Hydrogen Production Natural Gas Steam Reforming
Brand: TCWY
Price: 1 USD

Place of Origin : China (Mainland)

Brand Name : TCWY

Certification : ISO9001

Price : Negotiable

MOQ : 1 Set/Sets

Condition : New

Usage : Hydrogen

Production Rate : 50~50000Nm3/h

Voltage : Customized

Power(W) : Depend on capacity

Weight : Actual Weight

Dimension(L*W*H) : Actual Size

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Feedstock : Natural Gas

Process : Steam Reforming, PSA

Pressure : 1.0~2.5MPa

H2 Purtiy : 99%~99.999%

Temperature : Ambient

Capacity : 50~50000Nm3/h

Keyword : Hydrogen Production

Product name : Hydrogen Production Natural Gas Steam Reforming

Contact Now

Hydrogen Production Natural Gas Steam Reforming

Product Description

The technology of Hydrogen Production from Natural Gas is to perform the chemical reaction of pressurized and desulfurized natural gas and steam in a special reformer filling with catalyst to generate reforming gases with H2, CO2 and CO, then convert the CO in the converted gases to CO2 through recycling some heat by a waste heat boiler, and ultimately extract qualified H2 from the converted gases by pressure swing adsorption (PSA).

TCWY is always devoted to design and build cost-effective Hydrogen Production Natural Gas Steam Reforming Plant with reliable performance according to customers' local conditions and specific requirements.

Reaction Principle

CH4 + H2O → 3H2 + CO - Q
CO + H2O → H2 + CO2 + Q

Technical Features

Mature technology, safe and reliable.
Reliable and practical operation, high automation.
Cheap operation cost and short recovery period.
Reduce fuel consumption and exhaust emission by PSA desorbed gas burnbacking.

Main Performance

Feedstock	Natural Gas
Capacity	50~50000Nm3/h
H2 Purity	99%~99.999%
Pressure	1.0~2.5MPa
Natural Gas Consumption	0.4~0.55 Nm3/Nm3 H2 (containing fuel gas)
Power Consumption	0.8~1.5 kWh/Nm3 H2
Temperature	Ambient

Applications

Fine chemistries such as hydrogen peroxide, sorbitol, TDI, MDI, benzene hydrogenation, hydrogenation of tar; or hydrogenation process for pharmaceutical intermediates and oil refinery.

Advantages

Hydrogen Production Natural Gas Steam Reforming

About Us

Hydrogen Production Natural Gas Steam Reforming

Typical Clients

Hydrogen Production Natural Gas Steam Reforming

Contact Us

Hydrogen Production Natural Gas Steam Reforming
